Understanding Print Layouts

Print Layouts describe the layout of a DWF plot. DWF plots are produced by the MgMappingService service API and the Fusion SaveMap widget.

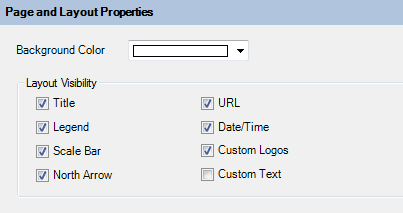

Page and Layout Properties

The Page and Layout Properties section of the editor allows you to configure the properties of this print layout

Page and Layout Properties

Custom Logos

The Custom Logos section of the editor allows you to configure the logos which will be in this Print Layout.

Custom Logos

Logos are symbols from a Symbol Library resource. Each logo has size and positioning parameters that you can configure via this editor

Custom Text

The Custom Text section of the editor allows you to configure the text labels which will be in this Print Layout

Custom Text

Each text label has individual size and positioning parameters that you can configure via this editor
